Customize mini fact sheets

You can configure mini fact sheets for objects globally. All global settings for mini fact sheets can be overwritten for single types by the fact sheet settings.

Customize mini fact sheets

You can customize the mini fact sheet for objects globally.

Prerequisite

  • You have created your own modification set.

  • You have the Admin role and the Configuration administration privilege.

Procedure. Procedure

  1. Click Application launcher Application launcher > Administration Administration.

  2. Click User interface. All available configuration and modification sets are displayed.

  3. Click the relevant modification set.

  4. Click Fact sheets on the Define modification set page.

  5. Move the mouse pointer to an item type, for example, chain. The item type should include Dashboard as a subordinate sheet.

  6. Click Edit Edit. The Edit fact sheet page opens. All subordinate sheets shown on the fact sheet are listed.

  7. Click Mini fact sheet.

  8. Select a custom layout. If you keep the System layout, the properties cannot be changed.

  9. Move the mouse pointer over the relevant property and click Edit Edit.

  10. Select a custom property template. If you keep the System template, the properties cannot be changed.

    To add a new property group, click Add group. The Select group property template page is displayed. Adjust your settings. Click Reset Back. The Configuration and modification sets page is displayed.

  11. Click Reset Back. The Configuration and modification sets page is displayed.

You have customized the mini fact sheet of these objects.

To display ARIS with this modification set, select the new modification set for display.

Customize white list for mini fact sheets

You can specify the items for which mini fact sheets should be displayed globally.

Prerequisite

  • You have created your own modification set.

  • You have the Admin role and the Configuration administration privilege.

Procedure. Procedure

  1. Click Application launcher Application launcher > Administration Administration.

  2. Click User interface. All available configuration and modification sets are displayed.

  3. Click the relevant modification set.

  4. Click Components on the Define modification set page.

  5. Click Edit Edit in the Mini fact sheets row. The Mini fact sheets page is displayed.

  6. Click in the field that contains the items for which mini fact sheets should be displayed. Enter the name of the item you want to add and click Return.

  7. Click Delete Delete on the item you want to remove.

  8. Click Reset Back. The Configuration and modification sets page is displayed.

You have customized the white list for mini fact sheets globally.

To display ARIS with this modification set, select the new modification set for display.

Change property order for mini fact sheets

You can change the order of the mini fact sheets for objects globally.

Prerequisite

  • You have created your own modification set.

  • You have the Admin role and the Configuration administration privilege.

Procedure. Procedure

  1. Click Application launcher Application launcher > Administration Administration.

  2. Click User interface. All available configuration and modification sets are displayed.

  3. Click the relevant modification set.

  4. Click Fact sheets on the Define modification set page.

  5. Move the mouse pointer to an item type, for example, chain. The item type should include Dashboard as a subordinate sheet.

  6. Click Edit Edit. The Edit fact sheet page opens. All subordinate sheets shown on the fact sheet are listed.

  7. Click Mini fact sheet.

  8. Select a custom layout. If you keep the System layout, the properties cannot be changed.

  9. Move the mouse cursor over the property you want to move.

  10. If you want to change the order of a property, click Up Up or Down Down.

    If you want to move a property to the top, click Top Top.

  11. Click Reset Back. The Configuration and modification sets page is displayed.

You have changed the order of the mini fact sheets of these objects.

To display ARIS with this modification set, select the new modification set for display.

Delete property from mini fact sheet

You can delete a property from a mini fact sheet of an object globally.

Prerequisite

  • You have created your own modification set.

  • You have the Admin role and the Configuration administration privilege.

Procedure. Procedure

  1. Click Application launcher Application launcher > Administration Administration.

  2. Click User interface. All available configuration and modification sets are displayed.

  3. Click the relevant modification set.

  4. Click Fact sheets on the Define modification set page.

  5. Move the mouse pointer to an item type, for example, chain. The item type should include Dashboard as a subordinate sheet.

  6. Click Edit Edit. The Edit fact sheet page opens. All subordinate sheets shown on the fact sheet are listed.

  7. Click Mini fact sheet.

  8. Select a custom layout. If you keep the System layout, the properties cannot be changed.

  9. Move the mouse cursor over the property you want to delete.

  10. Click Delete Delete.

  11. Click Reset Back. The Configuration and modification sets page is displayed.

You have deleted a property from a mini fact sheets of this object.

To display ARIS with this modification set, select the new modification set for display.

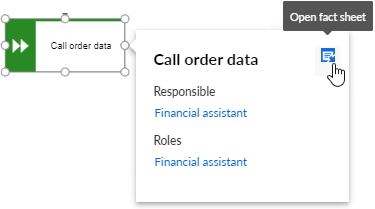

Mini fact sheets

You can enable and customize mini fact sheets for objects. If you hover over an object on the Diagram fact sheet, they are displayed.

Mini fact sheet
